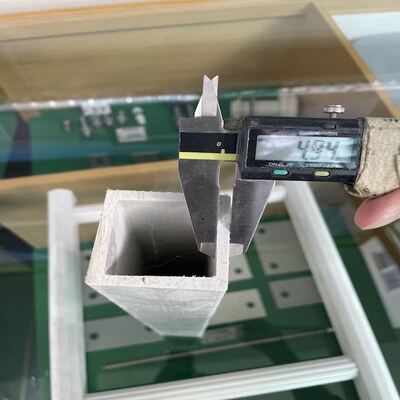

Versatile FRP Rectangular Tube profiles made from polyester epoxy and phenolic resins providing electric insulation and durability
| Tempat asal | Cina |
|---|---|
| Sertifikasi | ISO 9000 |
| Nomor model | tabung persegi panjang 52x32x5.0 |
| Kuantitas min Order | Air Dingin Bawaan |
| Harga | negotiatable |
| Kemasan rincian | <i>usually packed in pallet and the quantity of a container depends on the measure and shape of the |
| Waktu pengiriman | 7 hari |
| Syarat-syarat pembayaran | T/T, L/C |
| Menyediakan kemampuan | 10 MT SEBUAH MINGGU |
Detail produk
| Bahan | Profil diperkuat Fibergals dengan pultrusion | Warna | Beragam, sesuai pesanan |
|---|---|---|---|
| Dimensi | 52x32x5mm | Bahan | poliester, VE, fenolik, epoksi, dll |
| Karakter | Ringan dan tahan cuaca dll. | Aplikasi | Infrastruktur dan pelestarian bahan kimia dll. |
Deskripsi Produk
Versatile FRP Rectangular Tube profiles made from polyester epoxy and phenolic resins providing electric insulation and durability
Specification:
| Rectangular tube | |
| A×B×T | g/m |
| 35×22×3 | 542 |
| 38×32×5 | 1120 |
| 40×25×3 | 655 |
| 40×30×3 | 710 |
| 52×32×4 | 1124 |
| 55×25×2.2 | 640 |
| 55×25×3 | 820 |
| 65×30×3 | 965 |
| 65×30×4 | 1250 |
| 69×25.4×4 | 1280 |
| 73×25×3 | 1020 |
| (75×3)×( 35×6) | 1440 |
| 75×45×3.5 | 1470 |
| 75×50×5 | 2180 |
| (89×5)×( 44.5×10) | 2950 |
| 100×50×5 | 2590 |
| (139×5)×( 44.5×10) | 3850 |
Introduction:
FRP profiles are high strength composite that comprises the reinforced material, thermosetting resin matrix (polyester, VE,, phenolic, epoxy, etc) and glass fiber (in the form of roving, mat, fabric etc.) supplementary curing agent and addictives, and cures to the desired shape through a certain process.
Features:
Pultruded FRP profiles possess the features of light weight, high strength, corrosion resistance, electric insulation, anti-aging, nonmagnetic, easy processing and bright color, able to meet the properties demands of different fields and surroundings, and are widely used in construction industry, chemical perservation, electric electronics, sewage treatment, transportation and recreation.
Pultruded FRP profiles include H/I beam, angle, C/U channel, round tube, square tube, flat bar and rod etc standard profile and specially desgined customized profile.
